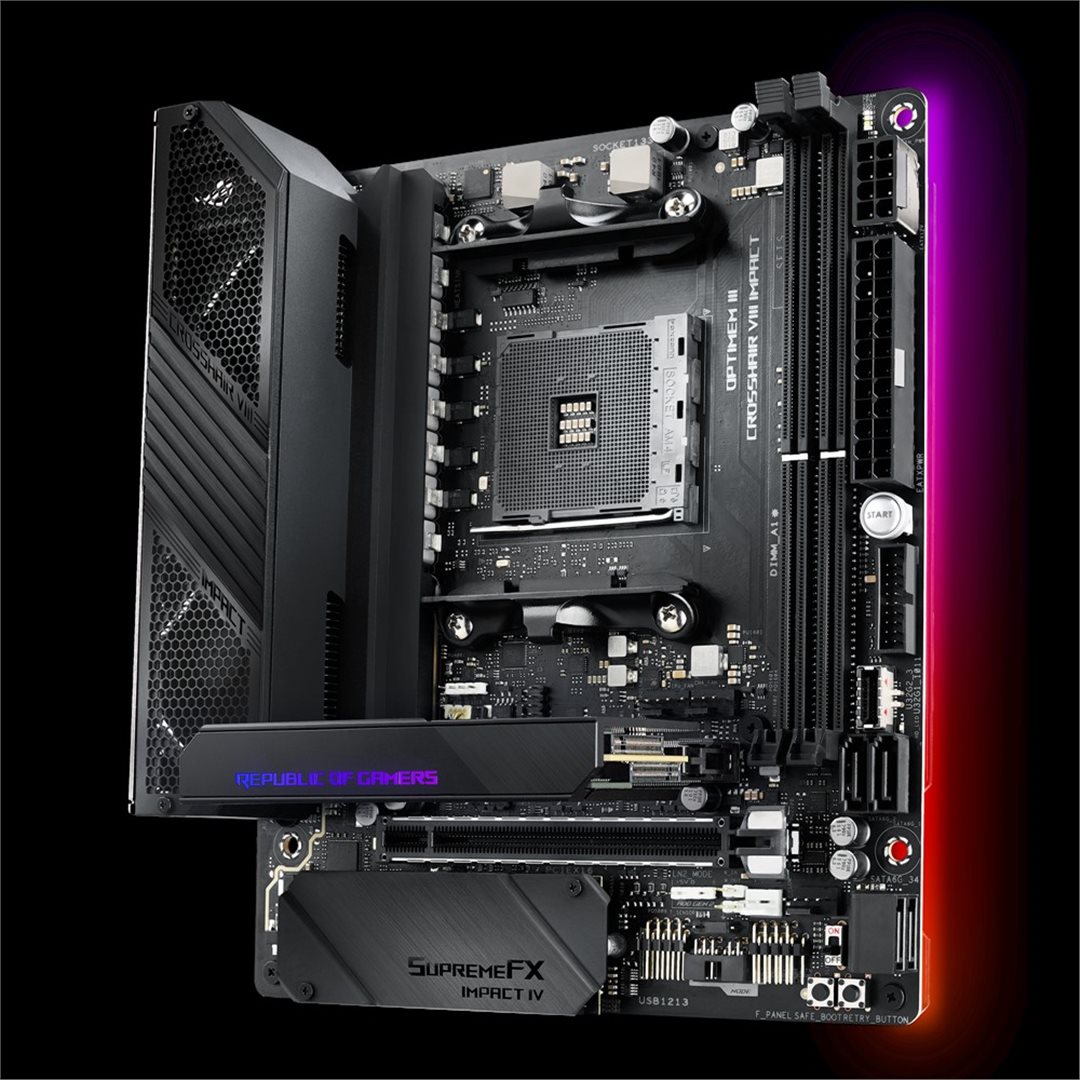

ASUS ROG CROSSHAIR VIII IMPACT/ AM4/ mini DTX

Chipset: AMD X570

Rozměrový formát: Mini-DTX Form Factor
Podpora pro procesory: AMD AM4 Socket 3rd and 2nd AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Patice procesoruAM4

Sloty na paměti: 2 x DIMM DDR4, Dual Channel Memory Architecture
Podpora pro paměti:
-3rd Gen AMD Ryzen™ Processors (4800(O.C.)/4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3200/3000/2933/2800/2666/2400/2133 MHz Un-buffered Memory)
-2nd Gen AMD Ryzen™ Processors (3600(O.C.)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory)
-2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors (3200(O.C.)/3000(O.C.)/2933/2800/2666/2400/2133 MHz Un-buffered Memory)
Max.velikost operační paměti: 64 GB

Zvuková karta: ROG SupremeFX 8-Channel High Definition Audio CODEC
Bluetooth: Bluetooth® 5.0
Síťová karta:

• Intel® I211-AT (LAN)
• Intel® Wi-Fi 6 AX200 (Wireless Data Network)

Rozšiřující sloty:

• 3rd Gen AMD Ryzen™ Processors: 1x PCIe 4.0 x16 (x16 mode)
• 2nd Gen AMD Ryzen™ Processors: 1x PCIe 3.0 x16 (x16 mode)
• 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors: 1x PCIe 3.0 x16 (x8 mode)

RAID řadič: RAID 0, RAID 1, RAID 10

SATA: 4 x SATA 6Gb/s
M.2: 2x M.2 Socket 3

Interní porty:

• 1x Aura RGB Strip Headers
• 2x Addressable Gen 2 header(s)
• 1x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
• 2x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support
• 4x SATA 6Gb/s connector(s)
• 1x CPU Fan connector(s)
• 1x Chassis Fan connector(s)
• 1x W_PUMP+ connector
• 1x 24-pin EATX Power connector(s)
• 1x 8-pin EATX 12V Power connectors
• 1x Front panel audio connector(s) (AAFP)
• 1x Slow Mode switch(es)
• 1x Reset button(s)
• 1x Node Connector(s)
• 1x LN2 Mode jumper(s)
• 1x Safe Boot button
• 1x ReTry button
• 1x System panel connector
• 1x T_Sensor Connector
• 1x W_IN header
• 1x W_OUT header
• 1x W_FLOW header
• 1x Start button
• 2x Radiator Fan Headers
• 1x USB 3.2 Gen 2 (up to 10Gbps) connector
• 1x USB 3.2 Gen 1 (up to 5Gbps) connector support additional 2 USB ports

Externí porty:

• 1x Optical S/PDIF out
• 1x Clear CMOS button(s)
• 1x USB BIOS FlashBack™ Button(s)
• 1x ASUS Wi-Fi Module
• 1x Q-Code LED
• 1x Reset Button
• 3x LED-illuminated audio jacks
• 2x USB 3.2 Gen 1 (up to 5Gbps) ports
• 6x USB 3.2 Gen 2 (up to 10Gbps) ports ()
• Anti-surge LAN (RJ45) port

BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, PnP, WfM2.0, SM BIOS 3.2, ACPI 6.2

Příslušenství:

• Uživatelksý manuál
• 4x SATA 6Gb/s kabely
• 1x Supporting DVD
• 1x ROG velká nálepka
• 2x M.2 sada šroubků (šroubky a upevnění)
• 1x Wi-Fi anténa
• 1x Prodlužovací kabel pro RGB pásky (80 cm)
• 1x Prodlužovací kabel pro adresovatelnou LED
• 1x Panelový kabel
• 1x ROG podtácek
• 1x ROG děkovná kartička
• 1x ROG SO-DIMM.2 s chladičem
• 1x 2-in-1 gumová podložka

Stránky výrobce: https://www.asus.com/Motherboards/ROG-Crosshair-VIII-Impact/overview/
https://www.asus.com/support/FAQ/1046215
https://www.asus.com/microsite/motherboard/ASUS-motherboards-Win11-ready/
